E-KR3033 | Frolyt

Electrolytic capacitor, 220 µF, 16 V (DC), -10/+50 %, radial, pitch 5 mm, Ø 10 mm, E-KR3033

Order No.: 12D6062
EAN: 4099879870933
MPN:
E-KR3033
E-KR3033 220/16 10,0X16,5
Series: EKR

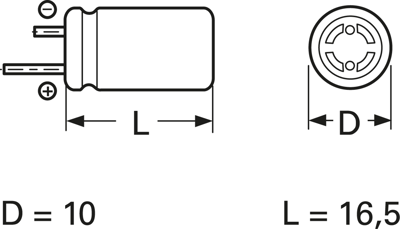

E-KR3033 Frolyt Electrolytic Capacitors Image 1
E-KR3033 Frolyt Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
1.0353 € *
Available: 604 pcs.
Next delivery: 800 pcs. on 2025-06-23
Leadtime: On Request **
Total Price:
1.04 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0353 €
10 pcs.
0.7378 €
100 pcs.
0.6307 €
500 pcs.
0.5474 €
1000 pcs.
0.4998 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type Frolyt EKR.

Low impedance (Z), radial wire ends for vertical mounting on PCBs, to DIN IEC 60384-1

Rated voltage 16 VDC.

Technical specifications
Ausführung Polar
Bauform radial
Durchmesser 10 mm
ESR (Äquivalenter Serienwiderstand) 800 mΩ
Kapazität 220 µF
Länge 16.5 mm
max. Temperatur 105 °C
min. Temperatur -40 °C
Nennspannung (DC) 16 V
Rastermaß 5 mm
Toleranz -10/+50 %
Logistics
Ursprungsland DE
Zolltarifnummer 85322200
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
