E-KS3019 | Frolyt
Electrolytic capacitor, 220 µF, 25 V (DC), ±20 %, radial, pitch 5 mm, Ø 8.7 mm, E-KS3019
Unit Price (€ / pc.)
0.6307 € *
Available: 162 pcs.
Next delivery: 1,000 pcs. on 2025-06-23
Leadtime: On Request **
Total Price:
0.63 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6307 €
25 pcs.
0.4998 €
100 pcs.
0.4284 €
250 pcs.
0.3689 €
1000 pcs.
0.3213 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Frolyt EKS.
Radial connecting wires for vertical mounting on PCBs. Compliant with DIN IEC 60384-1
Rated voltage 25 VDC.
Technical specifications
| Ausführung | Polar | |
| Bauform | radial | |

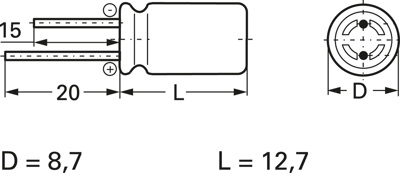

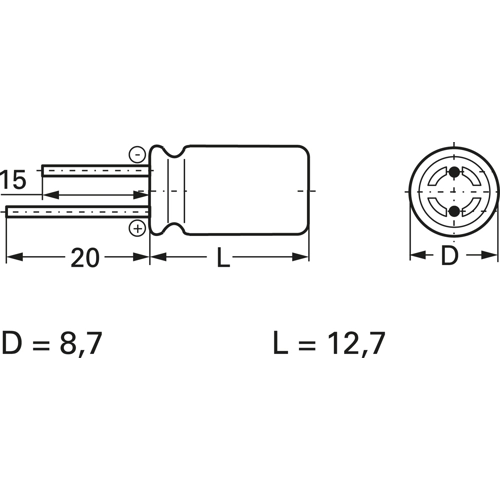

| Durchmesser | 8.7 mm | |
| ESR (Äquivalenter Serienwiderstand) | 1.01 Ω | |
| Kapazität | 220 µF | |
| Länge | 12.7 mm | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -40 °C | |
| Nennspannung (DC) | 25 V | |
| Rastermaß | 5 mm | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85322200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
