E-KS3027 | Frolyt

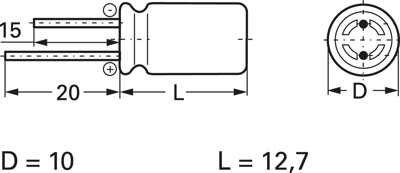

Electrolytic capacitor, 100 µF, 63 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, E-KS3027

Order No.: 12D154
EAN: 4099879868008
MPN:
E-KS3027
E-KS3027 100/63 10,0X12,7
Series: EKS
Frolyt

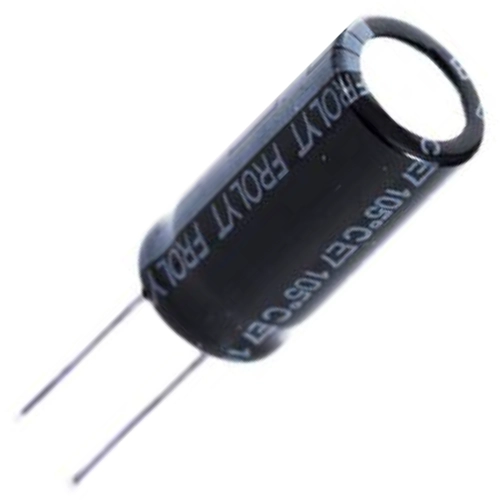

E-KS3027 Frolyt Electrolytic Capacitors Image 1
E-KS3027 Frolyt Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.8568 € *
Available: 1,150 pcs.
Leadtime: On Request **
Total Price:
0.86 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8568 €
10 pcs.
0.5355 €
50 pcs.
0.4284 €
250 pcs.
0.3689 €
1000 pcs.
0.3213 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type Frolyt EKS.

Radial connecting wires for vertical mounting on PCBs. Compliant with DIN IEC 60384-1

Rated voltage 63 VDC.

Technical specifications
Version polar
Design radial
diameter 10 mm
ESR (Equivalent Series Resistance) 1.27 Ω
Capacity 100 µF
Length 12.7 mm
max. operating temperature 105 °C
min. operating temperature -40 °C
Rated voltage (DC) 63 V
Grid 5 mm
Tolerance ±20 %
Logistics
Country of origin DE
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
