E-KS3068 | Frolyt

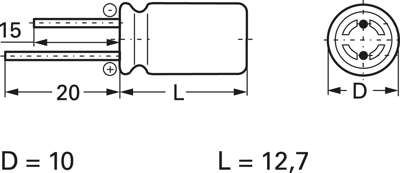

Electrolytic capacitor, 220 µF, 35 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, E-KS3068
Unit Price (€ / pc.)
0.8330 € *
Available: 943 pcs.
Leadtime: On Request **
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8330 €
10 pcs.
0.5236 €
50 pcs.
0.4284 €
250 pcs.
0.3689 €
1000 pcs.
0.3213 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Frolyt EKS.
Radial connecting wires for vertical mounting on PCBs. Compliant with DIN IEC 60384-1
Rated voltage 35 VDC.
Technical specifications
| Ausführung | Polar | |
| Bauform | radial | |
| Durchmesser | 10 mm | |
| ESR (Äquivalenter Serienwiderstand) | 870 mΩ | |
| Kapazität | 220 µF | |
| Länge | 12.7 mm | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -40 °C | |
| Nennspannung (DC) | 35 V | |
| Rastermaß | 5 mm | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85322200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
