E-KS3081 | Frolyt

Electrolytic capacitor, 470 µF, 25 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, E-KS3081

Order No.: 12D122
EAN: 4099879867742
MPN:
E-KS3081
E-KS3081 470/25 10,0X16,5
Series: EKS
Frolyt

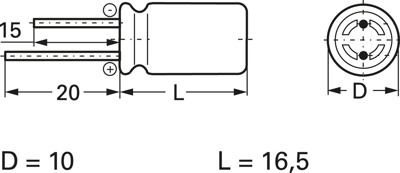

E-KS3081 Frolyt Electrolytic Capacitors Image 1
E-KS3081 Frolyt Electrolytic Capacitors Image 2
Image may differ
Print
Key Specification:
Version polar
Capacity 470 µF
Rated voltage (DC) 25 V
Tolerance ±20 %
Show 8 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.2614 € *
Available: 1,918 pcs.
Leadtime: On Request **
Total Price:
1.26 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2614 €
10 pcs.
0.7854 €
50 pcs.
0.6902 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Electrolytic capacitor, insulated aluminum can, type Frolyt EKS.

Radial connecting wires for vertical mounting on PCBs. Compliant with DIN IEC 60384-1

Rated voltage 25 VDC.
Technical specifications
Version polar
Design radial
diameter 10 mm
ESR (Equivalent Series Resistance) 470 mΩ
Capacity 470 µF
Length 16.5 mm
max. operating temperature 105 °C
min. operating temperature -40 °C
Rated voltage (DC) 25 V
Grid 5 mm
Tolerance ±20 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
