E-KS3222 | Frolyt

Electrolytic capacitor, 10 µF, 50 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 5.5 mm, E-KS3222

Order No.: 12D1312
EAN: 4099879867896
MPN:
E-KS3222
E-KS3222 10/50 5,5X12,0
Series: EKS
Frolyt

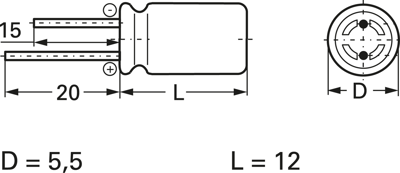

E-KS3222 Frolyt Electrolytic Capacitors Image 1
E-KS3222 Frolyt Electrolytic Capacitors Image 2
Image may differ
Print
Key Specification:
Version polar
Capacity 10 µF
Rated voltage (DC) 50 V
Tolerance ±20 %
Show 11 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.9877 € *
Available: 2,130 pcs.
Leadtime: On Request **
Total Price:
0.99 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9877 €
10 pcs.
0.6188 €
50 pcs.
0.4403 €
250 pcs.
0.3689 €
1000 pcs.
0.3070 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Electrolytic capacitor, insulated aluminum can, type Frolyt EKS.

Radial connecting wires for vertical mounting on PCBs. Compliant with DIN IEC 60384-1

Rated voltage 50 VDC.
Technical specifications
Version polar
Design radial
diameter 5.5 mm
ESR (Equivalent Series Resistance) 15.92 Ω
Capacity 10 µF
Length 12 mm
max. operating temperature 85 °C
min. operating temperature -40 °C
Rated voltage (DC) 50 V
Grid 2.5 mm
Tolerance ±20 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
