E-KS3407 | Frolyt

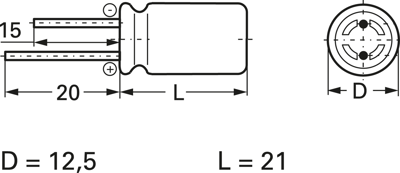

Electrolytic capacitor, 100 µF, 100 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, E-KS3407

Order No.: 12D180
EAN: 4099879868084
MPN:
E-KS3407
E-KS3407 100/100 12,5X21,0
Series: EKS
Frolyt
E-KS3407 Frolyt Electrolytic Capacitors Image 1
E-KS3407 Frolyt Electrolytic Capacitors Image 2
Image may differ
Print
Key Specification:
Ausführung Polar
Kapazität 100 µF
Nennspannung (DC) 100 V
Toleranz ±20 %
Show 7 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.4641 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
0.46 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2400 pcs.
0.4641 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Electrolytic capacitor, insulated aluminum can, type Frolyt EKS.

Radial connecting wires for vertical mounting on PCBs. Compliant with DIN IEC 60384-1

Rated voltage 100 VDC.
Technical specifications
Ausführung Polar
Bauform radial
Durchmesser 12.5 mm
ESR (Äquivalenter Serienwiderstand) 1.11 Ω
Kapazität 100 µF
Länge 21 mm
max. Temperatur 105 °C
min. Temperatur -40 °C
Nennspannung (DC) 100 V
Rastermaß 5 mm
Toleranz ±20 %
Show similar products 0
Logistics
Ursprungsland DE
Zolltarifnummer 85322200
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
