E-KS3525 | Frolyt

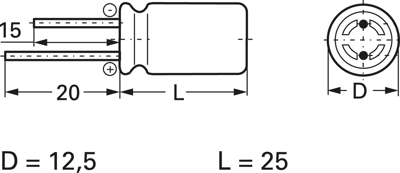

Electrolytic capacitor, 470 µF, 63 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, E-KS3525

Order No.: 12D158
EAN: 4099879868022
MPN:
E-KS3525
E-KS3525 470/63 12,5X25,0
Series: EKS
Frolyt
E-KS3525 Frolyt Electrolytic Capacitors Image 1
E-KS3525 Frolyt Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
1.9754 € *
Available: 840 pcs.
Leadtime: On Request **
Total Price:
1.98 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9754 €
10 pcs.
1.2376 €
50 pcs.
1.0948 €
250 pcs.
0.9401 €
1000 pcs.
0.8211 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type Frolyt EKS.

Radial connecting wires for vertical mounting on PCBs. Compliant with DIN IEC 60384-1

Rated voltage 63 VDC.

Technical specifications
Version polar
Design radial
diameter 12.5 mm
ESR (Equivalent Series Resistance) 270 mΩ
Capacity 470 µF
Length 25 mm
max. operating temperature 105 °C
min. operating temperature -40 °C
Rated voltage (DC) 63 V
Grid 5 mm
Tolerance ±20 %
Logistics
Country of origin DE
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
