E-KS3571 | Frolyt
Electrolytic capacitor, 1000 µF, 50 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16.5 mm, E-KS3571
Unit Price (€ / pc.)
2.4514 € *
Available: 41 pcs.
Next delivery: 1,200 pcs. on 2025-04-11
Leadtime: 7 Weeks **
Total Price:
2.45 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4514 €
10 pcs.
1.5351 €
50 pcs.
1.3566 €
250 pcs.
1.1662 €
1000 pcs.
1.0234 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Frolyt EKS.
Radial connecting wires for vertical mounting on PCBs. Compliant with DIN IEC 60384-1
Rated voltage 50 VDC.

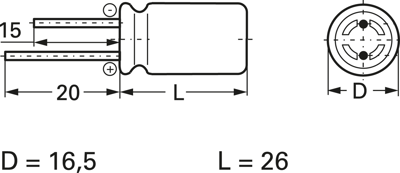

Technical specifications
| Ausführung | Polar | |
| Bauform | radial | |
| Durchmesser | 16.5 mm | |
| ESR (Äquivalenter Serienwiderstand) | 160 mΩ | |
| Kapazität | 1000 µF | |
| Länge | 26 mm | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -40 °C | |
| Nennspannung (DC) | 50 V | |
| Rastermaß | 7.5 mm | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85322200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
