E-KSU022 | Frolyt
Bipolar electrolytic capacitor, 22 µF, 25 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 6.8 mm, E-KSU022
Unit Price (€ / pc.)
0.6188 € *
Available: 8 pcs.
Leadtime: On Request **
Total Price:
0.62 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6188 €
10 pcs.
0.5831 €
50 pcs.
0.4284 €
250 pcs.
0.3451 €
1000 pcs.
0.2963 €
2000 pcs.
0.2618 €
*incl. VAT plus shipping costs
**Subject to prior sale
Bipolar electrolytic capacitor, E-KSU022, Frolyt
Aluminum electrolytic capacitor
Features
- Low-voltage-electrolytic capacitor
- Small dimensions
- Insulated/Non polarized
- Pulse-proof
- Service life 1000...2500 h/+105 °C
Technical specifications
| Version | bipolar | |
| Design | radial | |

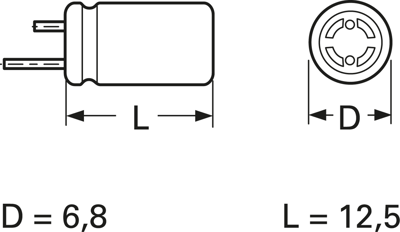

| diameter | 6.8 mm | |
| ESR (Equivalent Series Resistance) | 14.47 Ω | |
| Capacity | 22 µF | |
| Length | 12.5 mm | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 25 V | |
| Grid | 2.5 mm | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
