E-KSU396 | Frolyt

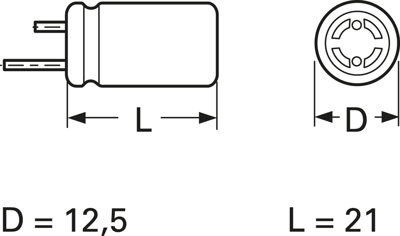

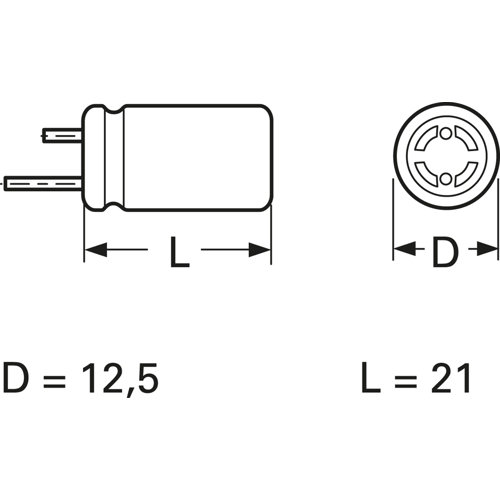

Bipolar electrolytic capacitor, 47 µF, 100 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, E-KSU396
Unit Price (€ / pc.)
0.833 € *
Available: 1,200 pcs.
Leadtime: On Request **
Bipolar electrolytic capacitor, E-KSU396, Frolyt
Aluminum electrolytic capacitor
Features
- Low-voltage-electrolytic capacitor
- Small dimensions
- Insulated/Non polarized
- Pulse-proof
- Service life 1000...2500 h/+105 °C
Technical specifications
| Version | bipolar | |
| Design | radial | |
| diameter | 12.5 mm | |
| ESR (Equivalent Series Resistance) | 3.39 Ω | |
| Capacity | 47 µF | |
| Length | 21 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 100 V | |
| Grid | 5 mm | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
