E-KSU457 | Frolyt
Bipolar electrolytic capacitor, 47 µF, 35 V (DC), ±20 %, radial, pitch 5 mm, Ø 8.7 mm, E-KSU457
Unit Price (€ / pc.)
0.7378 € *
Available: 27 pcs.
Next delivery: 3,000 pcs. on 2025-05-16
Leadtime: 4 Weeks **
Total Price:
0.74 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7378 €
10 pcs.
0.4641 €
50 pcs.
0.3808 €
250 pcs.
0.3213 €
1000 pcs.
0.2773 €
*incl. VAT plus shipping costs
**Subject to prior sale
Bipolar electrolytic capacitor, E-KSU457, Frolyt
Aluminum electrolytic capacitor
Features
- Low-voltage-electrolytic capacitor
- Small dimensions
- Insulated/Non polarized
- Pulse-proof
- Service life 1000...2500 h/+105 °C
Technical specifications
| Ausführung | Bipolarer | |
| Bauform | radial | |

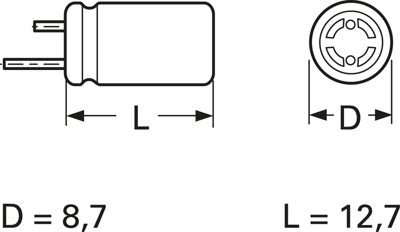

| Durchmesser | 8.7 mm | |
| ESR (Äquivalenter Serienwiderstand) | 5.42 Ω | |
| Kapazität | 47 µF | |
| Länge | 12.7 mm | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -40 °C | |
| Nennspannung (DC) | 35 V | |
| Rastermaß | 5 mm | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85322200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
