E-RF3296 | Frolyt

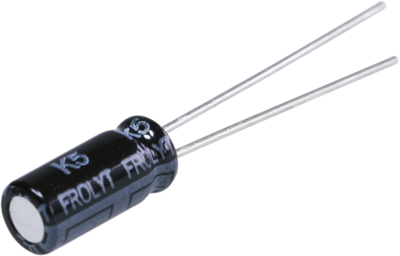

Name: Electrolytic capacitor, 330 µF, 63 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, E-RF3296
Brand: Frolyt
SKU: 12D5860
Price: 0.45 EUR
Availability: OutOfStock

Electrolytic capacitor, 330 µF, 63 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, E-RF3296

Order No.: 12D5860

EAN: 4099879870865

MPN:

E-RF3296

E-RF3296 330/63 12,5X21,0

Series: ERF

Image may differ

Key Specification:

Version polar

Capacity 330 µF

Rated voltage (DC) 63 V

Tolerance ±20 %

Show 13 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.4522 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

0.45 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Electrolytic capacitor, insulated aluminum can, type Frolyt ERF.

Resistant against switching transients, low impedance (Z), radial wire ends for vertical mounting on PCBs, to DIN IEC 60384-1

Rated voltage 63 VDC.

Download

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	85322200

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
