E-RSM313 | Frolyt

Electrolytic capacitor, 100 µF, 50 V (DC), ±20 %, SMD, pitch 4.5 mm, Ø 10.2 mm, E-RSM313

Order No.: 10D4206
EAN: 4099879865267
MPN:
E-RSM313
E-RSM313 100/50 10,2X10,0
Series: ERSM
Frolyt

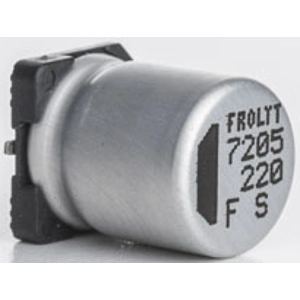

E-RSM313 Frolyt Electrolytic Capacitors Image 1
E-RSM313 Frolyt Electrolytic Capacitors Image 2
Image may differ
Print
Key Specification:
Version polar
Capacity 100 µF
Rated voltage (DC) 50 V
Tolerance ±20 %
Show 6 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.3328 € *
Available: 35 pcs.
Leadtime: On Request **
Total Price:
1.33 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3328 €
10 pcs.
0.8330 €
50 pcs.
0.7378 €
250 pcs.
0.6307 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

SMD aluminum electrolytic capacitor, type Frolyt ERSM.

For surface mounting, suitable for use at temperatures up to +105 °C to DIN IEC 60384-1
Technical specifications
Version polar
Design SMD
diameter 10.2 mm
ESR (Equivalent Series Resistance) 1.75 Ω
Capacity 100 µF
Length 10 mm
max. operating temperature 105 °C
min. operating temperature -55 °C
Rated voltage (DC) 50 V
Grid 4.5 mm
Tolerance ±20 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
