E-RY3020 | Frolyt

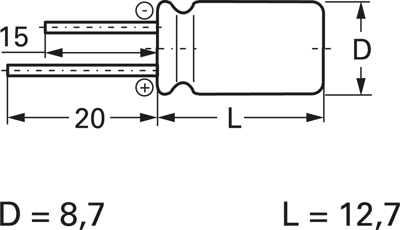

Electrolytic capacitor, 47 µF, 63 V (DC), ±20 %, radial, pitch 5 mm, Ø 8.7 mm, E-RY3020

Order No.: 12D3904
EAN: 4099879868114
MPN:
E-RY3020
E-RY3020 47/63 12,5X21,0
Series: ERY
Frolyt
E-RY3020 Frolyt Electrolytic Capacitors Image 1
E-RY3020 Frolyt Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.6426 € *
Available: 58 pcs.
Leadtime: On Request **
Total Price:
0.64 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6426 €
25 pcs.
0.5117 €
100 pcs.
0.4284 €
250 pcs.
0.3689 €
1000 pcs.
0.3332 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type Frolyt ERY.

With particularly low ESR/Z, radial wire ends for vertical mounting, to DIN IEC 60384-1

Rated voltage 63 VDC.

Technical specifications
Version polar
Design radial
diameter 8.7 mm
ESR (Equivalent Series Resistance) 2.37 Ω
Capacity 47 µF
Length 12.7 mm
max. operating temperature 105 °C
min. operating temperature -55 °C
Rated voltage (DC) 63 V
Grid 5 mm
Tolerance ±20 %
Logistics
Country of origin DE
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
