E-RY3025 | Frolyt
Electrolytic capacitor, 1000 µF, 10 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, E-RY3025
Unit Price (€ / pc.)
0.9877 € *
Available: 774 pcs.
Leadtime: On Request **
Total Price:
9.88 € *
Price list
Quantity
Price per unit*
10 pcs.
0.9877 €
50 pcs.
0.8687 €
250 pcs.
0.7497 €
1000 pcs.
0.6545 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Frolyt ERY.
With particularly low ESR/Z, radial wire ends for vertical mounting, to DIN IEC 60384-1
Rated voltage 10 VDC.

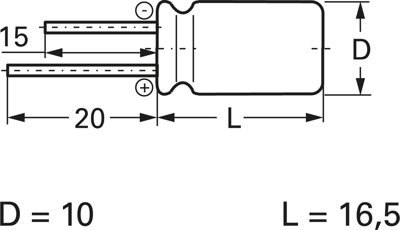

Technical specifications
| Ausführung | Polar | |
| Bauform | radial | |
| Durchmesser | 10 mm | |
| ESR (Äquivalenter Serienwiderstand) | 300 mΩ | |
| Kapazität | 1000 µF | |
| Länge | 16.5 mm | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (DC) | 10 V | |
| Rastermaß | 5 mm | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85322200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
