E-RY3039 | Frolyt

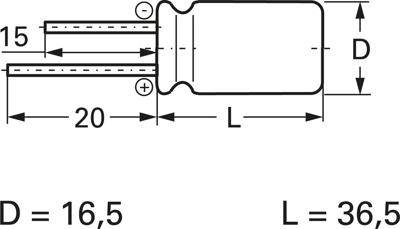

Electrolytic capacitor, 4700 µF, 25 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16.5 mm, E-RY3039

Order No.: 12D3990
EAN: 4099879868459
MPN:
E-RY3039
E-RY3039 4700/25 16,5X36,5
Series: ERY
Frolyt
E-RY3039 Frolyt Electrolytic Capacitors Image 1
E-RY3039 Frolyt Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
2.8441 € *
Available: 917 pcs.
Leadtime: On Request **
Total Price:
2.84 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8441 €
10 pcs.
2.3681 €
100 pcs.
2.0349 €
250 pcs.
1.8445 €
1000 pcs.
1.6898 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type Frolyt ERY.

With particularly low ESR/Z, radial wire ends for vertical mounting, to DIN IEC 60384-1

Rated voltage 25 VDC.

Technical specifications
Version polar
Design radial
diameter 16.5 mm
ESR (Equivalent Series Resistance) 50 mΩ
Capacity 4700 µF
Length 36.5 mm
max. operating temperature 105 °C
min. operating temperature -55 °C
Rated voltage (DC) 25 V
Grid 7.5 mm
Tolerance ±20 %
Logistics
Country of origin DE
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
