E-RY3043 | Frolyt
Electrolytic capacitor, 100 µF, 50 V (DC), ±20 %, radial, pitch 5 mm, Ø 8.7 mm, E-RY3043
Unit Price (€ / pc.)
0.6664 € *
Available: 2,541 pcs.
Next delivery: 2,800 pcs. on 2025-09-22
Leadtime: 2 Weeks **
Total Price:
0.67 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6664 €
25 pcs.
0.5236 €
100 pcs.
0.4522 €
250 pcs.
0.3927 €
1000 pcs.
0.3451 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Frolyt ERY.
With particularly low ESR/Z, radial wire ends for vertical mounting, to DIN IEC 60384-1
Rated voltage 50 VDC.

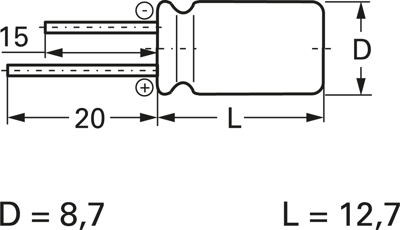

Technical specifications
| Ausführung | Polar | |
| Bauform | radial | |
| Durchmesser | 8.7 mm | |
| ESR (Äquivalenter Serienwiderstand) | 1.27 Ω | |
| Kapazität | 100 µF | |
| Länge | 12.7 mm | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (DC) | 50 V | |
| Rastermaß | 5 mm | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85322200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
