E-RY3052 | Frolyt

Electrolytic capacitor, 47 µF, 100 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, E-RY3052

Order No.: 12D3906
EAN: 4099879868121
MPN:
E-RY3052
E-RY3052 47/100 10,0X16,5
Series: ERY
Frolyt

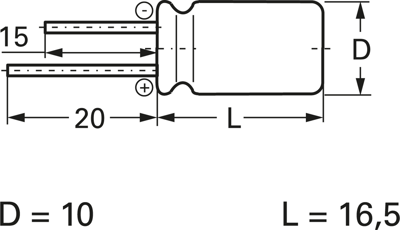

E-RY3052 Frolyt Electrolytic Capacitors Image 1
E-RY3052 Frolyt Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
1.2733 € *
Available: 1,268 pcs.
Leadtime: On Request **
Total Price:
1.27 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2733 €
10 pcs.
0.7973 €
50 pcs.
0.7021 €
250 pcs.
0.6069 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type Frolyt ERY.

With particularly low ESR/Z, radial wire ends for vertical mounting, to DIN IEC 60384-1

Rated voltage 100 VDC.

Technical specifications
Version polar
Design radial
diameter 10 mm
ESR (Equivalent Series Resistance) 2.37 Ω
Capacity 47 µF
Length 16.5 mm
max. operating temperature 105 °C
min. operating temperature -55 °C
Rated voltage (DC) 100 V
Grid 5 mm
Tolerance ±20 %
Logistics
Country of origin DE
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
