K-AG5035 | Frolyt

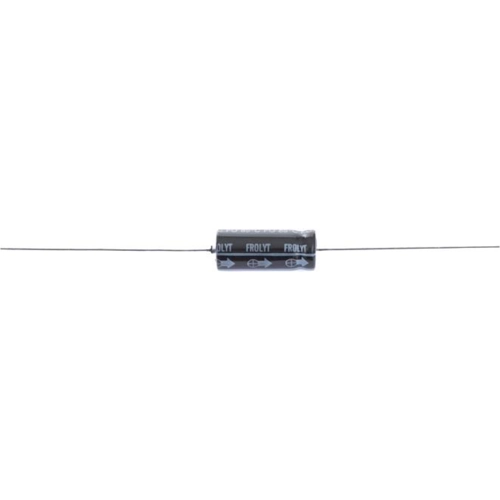

Name: Electrolytic capacitor, 100 µF, 25 V (DC), -20/+20 %, axial, Ø 8.5 mm, K-AG5035
Brand: Frolyt
SKU: 12D245
Price: 0.58 EUR
Availability: OutOfStock

Electrolytic capacitor, 100 µF, 25 V (DC), -20/+20 %, axial, Ø 8.5 mm, K-AG5035

Order No.: 12D245

EAN: 4099891387433

MPN:

K-AG5035

Series: EAG

Image may differ

Key Specification:

Version polar

Capacity 100 µF

Rated voltage (DC) 25 V

Tolerance -20/+20 %

Show 18 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.5831 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

0.58 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Aluminum electrolytic capacitor, K-AG5035, Frolyt

Aluminum-electrolytic capacitor, Axial, Downsized, Insulated, Polarized, Pulse proof, Endurance at least 1.500h to 2.500h at +105°C. This product is universally applicable for horizontal mounting in printed boards.

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	85322200
Original Packaging	Carton with 2,000 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

1 item in 18 variations

*incl. VAT plus shipping costs

Electrolytic capacitor, 470 µF, 25 V (DC), -20/+20 %, axial, Ø 8.5 mm, K-AG5040

Order No.:

12D250

Manufacturer:

Frolyt

Manufacturer SKU:

K-AG5040

Available: 1,748 pcs. Leadtime: On Request **

Total Price: 1.18 € *

1 pcs.

1.1781 €

50 pcs.

0.9044 €

450 pcs.

0.7854 €

900 pcs.

0.6902 €

1800 pcs.

0.6188 €

8.5 mm

20 mm

470 µF

410 mA

axial

polar

-20/+20 %

-40 °C

25 V

105 °C

Electrolytic capacitor, 1000 µF, 25 V (DC), -20/+20 %, axial, Ø 14 mm, K-AG3285

Order No.:

12D253

Manufacturer:

Frolyt

Manufacturer SKU:

K-AG3285

Available: 428 pcs. Leadtime: On Request **

Total Price: 2.02 € *

1 pcs.

2.0230 €

50 pcs.

1.5351 €

150 pcs.

1.3447 €

300 pcs.

1.1781 €

600 pcs.

1.0591 €

14 mm

25.5 mm

1000 µF

606 mA

axial

polar

-20/+20 %

-40 °C

25 V

105 °C

Electrolytic capacitor, 22 µF, 25 V (DC), -20/+20 %, axial, Ø 8.5 mm, K-AG5032

Order No.:

12D242

Manufacturer:

Frolyt

Manufacturer SKU:

K-AG5032

Available: 0 pcs. Leadtime: On Request **

Total Price: 0.58 € *

2000 pcs.

0.5831 €

8.5 mm

16 mm

22 µF

86 mA

axial

polar

-20/+20 %

-40 °C

25 V

105 °C

Electrolytic capacitor, 33 µF, 25 V (DC), -20/+20 %, axial, Ø 8.5 mm, K-AG5033

Order No.:

12D243

Manufacturer:

Frolyt

Manufacturer SKU:

K-AG5033

Available: 0 pcs. Leadtime: On Request **

Total Price: 0.58 € *

2000 pcs.

0.5831 €

8.5 mm

16 mm

33 µF

106 mA

axial

polar

-20/+20 %

-40 °C

25 V

105 °C

Electrolytic capacitor, 47 µF, 25 V (DC), -20/+20 %, axial, Ø 8.5 mm, K-AG5034

Order No.:

12D244

Manufacturer:

Frolyt

Manufacturer SKU:

K-AG5034

Available: 0 pcs. Leadtime: On Request **

Total Price: 0.61 € *

2000 pcs.

0.6069 €

8.5 mm

16 mm

47 µF

126 mA

axial

polar

-20/+20 %

-40 °C

25 V

105 °C

Electrolytic capacitor, 100 µF, 25 V (DC), -20/+20 %, axial, Ø 8.5 mm, K-AG5035

Order No.:

12D245

Manufacturer:

Frolyt

Manufacturer SKU:

K-AG5035

Available: 0 pcs. Leadtime: On Request **

Total Price: 0.58 € *

2000 pcs.

0.5831 €

8.5 mm

16 mm

100 µF

184 mA

axial

polar

-20/+20 %

-40 °C

25 V

105 °C

Electrolytic capacitor, 150 µF, 25 V (DC), -20/+20 %, axial, Ø 8.5 mm, K-AG5036

Order No.:

12D246

Manufacturer:

Frolyt

Manufacturer SKU:

K-AG5036

Available: 0 pcs. Leadtime: On Request **

Total Price: 0.58 € *

2000 pcs.

0.5831 €

8.5 mm

16 mm

150 µF

225 mA

axial

polar

-20/+20 %

-40 °C

25 V

105 °C

Electrolytic capacitor, 220 µF, 25 V (DC), -20/+20 %, axial, Ø 8.5 mm, K-AG5037

Order No.:

12D247

Manufacturer:

Frolyt

Manufacturer SKU:

K-AG5037

Available: 0 pcs. Leadtime: On Request **

Total Price: 0.58 € *

2000 pcs.

0.5831 €

8.5 mm

16 mm

220 µF

273 mA

axial

polar

-20/+20 %

-40 °C

25 V

105 °C

Electrolytic capacitor, 330 µF, 25 V (DC), -20/+20 %, axial, Ø 8.5 mm, K-AG5038

Order No.:

12D248

Manufacturer:

Frolyt

Manufacturer SKU:

K-AG5038

Available: 0 pcs. Leadtime: On Request **

Total Price: 0.58 € *

2000 pcs.

0.5831 €

8.5 mm

16 mm

330 µF

334 mA

axial

polar

-20/+20 %

-40 °C

25 V

105 °C

Electrolytic capacitor, 390 µF, 25 V (DC), -20/+20 %, axial, Ø 8.5 mm, K-AG5039

Order No.:

12D249

Manufacturer:

Frolyt

Manufacturer SKU:

K-AG5039

Available: 0 pcs. Leadtime: On Request **

Total Price: 0.61 € *

2000 pcs.

0.6069 €

8.5 mm

16 mm

390 µF

364 mA

axial

polar

-20/+20 %

-40 °C

25 V

105 °C

Electrolytic capacitor, 560 µF, 25 V (DC), -20/+20 %, axial, Ø 8.5 mm, K-AG5041

Order No.:

12D251

Manufacturer:

Frolyt

Manufacturer SKU:

K-AG5041

Available: 0 pcs. Leadtime: On Request **

Total Price: 0.63 € *

1800 pcs.

0.6307 €

8.5 mm

20 mm

560 µF

448 mA

axial

polar

-20/+20 %

-40 °C

25 V

105 °C

Electrolytic capacitor, 820 µF, 25 V (DC), -20/+20 %, axial, Ø 14 mm, K-AG3284

Order No.:

12D252

Manufacturer:

Frolyt

Manufacturer SKU:

K-AG3284

Available: 0 pcs. Leadtime: On Request **

Total Price: 1.09 € *

600 pcs.

1.0948 €

14 mm

25.5 mm

820 µF

548 mA

axial

polar

-20/+20 %

-40 °C

25 V

105 °C

Electrolytic capacitor, 1200 µF, 25 V (DC), -20/+20 %, axial, Ø 14 mm, K-AG3286

Order No.:

12D254

Manufacturer:

Frolyt

Manufacturer SKU:

K-AG3286

Available: 0 pcs. Leadtime: On Request **

Total Price: 1.05 € *

600 pcs.

1.0472 €

14 mm

25.5 mm

1200 µF

663 mA

axial

polar

-20/+20 %

-40 °C

25 V

105 °C

Electrolytic capacitor, 1500 µF, 25 V (DC), -20/+20 %, axial, Ø 14 mm, K-AG3287

Order No.:

12D255

Manufacturer:

Frolyt

Manufacturer SKU:

K-AG3287

Available: 0 pcs. Leadtime: On Request **

Total Price: 1.11 € *

600 pcs.

1.1067 €

14 mm

25.5 mm

1500 µF

742 mA

axial

polar

-20/+20 %

-40 °C

25 V

105 °C

Electrolytic capacitor, 1800 µF, 25 V (DC), -20/+20 %, axial, Ø 14 mm, K-AG3288

Order No.:

12D256

Manufacturer:

Frolyt

Manufacturer SKU:

K-AG3288

Available: 0 pcs. Leadtime: On Request **

Total Price: 1.04 € *

600 pcs.

1.0353 €

14 mm

25.5 mm

1800 µF

813 mA

axial

polar

-20/+20 %

-40 °C

25 V

105 °C

Electrolytic capacitor, 2200 µF, 25 V (DC), -20/+20 %, axial, Ø 14 mm, K-AG3221

Order No.:

12D257

Manufacturer:

Frolyt

Manufacturer SKU:

K-AG3221

Available: 0 pcs. Leadtime: On Request **

Total Price: 1.04 € *

600 pcs.

1.0353 €

14 mm

25.5 mm

2200 µF

898 mA

axial

polar

-20/+20 %

-40 °C

25 V

105 °C

Electrolytic capacitor, 3300 µF, 25 V (DC), -20/+20 %, axial, Ø 14 mm, K-AG3289

Order No.:

12D258

Manufacturer:

Frolyt

Manufacturer SKU:

K-AG3289

Available: 0 pcs. Leadtime: On Request **

Total Price: 1.15 € *

600 pcs.

1.1543 €

14 mm

30.5 mm

3300 µF

1100 mA

axial

polar

-20/+20 %

-40 °C

25 V

105 °C

Electrolytic capacitor, 4700 µF, 25 V (DC), -20/+20 %, axial, Ø 14 mm, K-AG3196

Order No.:

12D259

Manufacturer:

Frolyt

Manufacturer SKU:

K-AG3196

Available: 0 pcs. Leadtime: On Request **

Total Price: 1.20 € *

600 pcs.

1.2019 €

14 mm

30.5 mm

4700 µF

1446 mA

axial

polar

-20/+20 %

-40 °C

25 V

105 °C

On our category pages and product pages you will find the following green symbols:

Available via download:

Schematic symbols
PCB footprints
3D models

Schematic symbols and PCB footprints are available

Available via download:

Schematic symbols
PCB footprints

No models are currently available

Circuit diagram symbols and PCB footprint can be requested by clicking on the icon for the respective product.

Country	Runtime days	Freight excl. VAT	Freight incl. VAT
Germany	1	6,90 €	8,21 €
Austria	1-2	8,30 €	9,96 €
Switzerland	1-2	16,40 €	19,52 €

We deliver our articles to other countries:

More information

	Version	polar
	Design	axial
	diameter	8.5 mm
	ESR (Equivalent Series Resistance)	2.23 Ω
	Capacity	100 µF
	Length	16 mm
	max. operating temperature	105 °C
	min. operating temperature	-40 °C
	Rated voltage (DC)	25 V
	Ripple current	184 mA
	Tolerance	-20/+20 %
