A22045016030 | FTcap

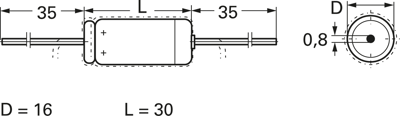

Electrolytic capacitor, 22 µF, 450 V (DC), -10/+30 %, axial, Ø 16 mm, A22045016030

Order No.: 14D225
EAN: 4099879873149
MPN:
A22045016030
1010236
Series: A
FTcap
A22045016030 FTcap Electrolytic Capacitors Image 1
A22045016030 FTcap Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
3.1535 € *
Available: 959 pcs.
Leadtime: On Request **
Total Price:
3.15 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1535 €
10 pcs.
2.6180 €
100 pcs.
2.2610 €
250 pcs.
2.0468 €
1000 pcs.
1.8802 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electrolytic capacitor in insulated aluminum can, type FTCAP Typ A100.

Axial

Rated voltage 450 VDC.

Technical specifications
Version polar
Design axial
diameter 16 mm
ESR (Equivalent Series Resistance) 4.34 Ω
Capacity 22 µF
Length 30 mm
max. operating temperature 85 °C
Rated voltage (DC) 450 V
Ripple current 150 mA
Tolerance -10/+30 %
Logistics
Country of origin DE
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
