GMA47216040100 | FTcap

Electrolytic capacitor, 4700 µF, 160 V (DC), ±20 %, can, Ø 40 mm, GMA47216040100

Order No.: 14D3123
EAN: 4099891764371
MPN:
GMA47216040100
1012764
Series: GMA
FTcap
GMA47216040100 FTcap Electrolytic Capacitors

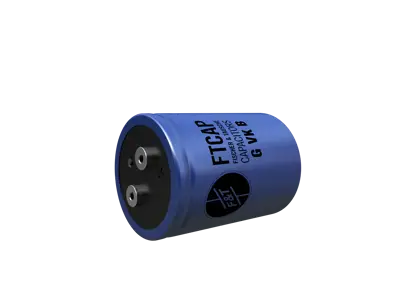

Image may differ
Unit Price (€ / pc.)
23.5144 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
23.51 € *
Price list
Quantity
Price per unit*
200 pcs.
23.5144 €
500 pcs.
22.8123 €
1000 pcs.
21.6342 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electrolytic capacitor, 1012764, FTcap

The 1012764 electrolytic capacitor features a high capacitance and low inductance ESL, with all internal contacts securely welded.

Features

  • High CV product
  • RoHS compliant
  • REACH compliant

Applications

  • Computer
  • Inverter/drives
  • Traction
  • Welding
Technical specifications
Connection screw connection
Version polar
Design can
diameter 40 mm
ESR (Equivalent Series Resistance) 24 mΩ
Capacity 4700 µF
Length 100 mm
max. operating temperature 85 °C
min. operating temperature -40 °C
Rated voltage (DC) 160 V
Ripple current 5.4 A
Tolerance ±20 %
Logistics
Country of origin DE
Customs tariff number 85322200
Original Packaging Carton with 200 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
