GMB22304040070 | FTcap
Electrolytic capacitor, 22000 µF, 40 V (DC), -10/+30 %, can, Ø 40 mm, GMB22304040070
Unit Price (€ / pc.)
15.9936 € *
Available: 171 pcs.
Leadtime: 12 Weeks **
Total Price:
15.99 € *
Price list
Quantity
Price per unit*
1 pcs.
15.9936 €
10 pcs.
14.8036 €
50 pcs.
13.9706 €
100 pcs.
13.1733 €
250 pcs.
12.5545 €
*incl. VAT plus shipping costs
**Subject to prior sale

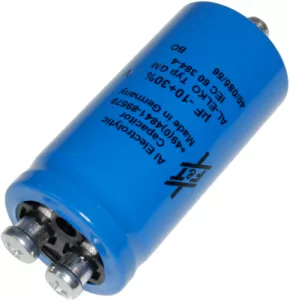

Electrolytic capacitor in aluminum can, type FTCAP GMB.
With threaded mounting studs and M 5 thread connections
Rated voltage 40 VDC.
Note: Due to the internal structure, the cup is not potential-free. Therefore, it is absolutely necessary to use insulating material when mounting on a conductive surface.
Technical specifications
| Connection | thread | |
| Version | polar | |
| Design | can | |
| diameter | 40 mm | |
| Capacity | 22000 µF | |
| Length | 70 mm | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 40 V | |
| Tolerance | -10/+30 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
