GS10302530030 | FTcap

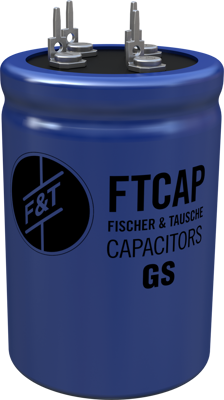

Electrolytic capacitor, 10000 µF, 25 V (DC), -10/+30 %, can, Ø 30 mm, GS10302530030
Unit Price (€ / pc.)
6.2832 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
6.28 € *
Price list
Quantity
Price per unit*
500 pcs.
6.2832 €
1000 pcs.
6.0928 €
3000 pcs.
5.7834 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, 1024526, FTcap
The 1024526 electrolytic capacitor features a high reliability and long useful life, with all internal contacts securely welded.
Features
- High CV product
- RoHS compliant
- REACH compliant
Applications
- HiFi
- Consumer
- Industrial
- Inverter/drives
Technical specifications
| Anschluss | Leiterplatten-/Lötanschluss | |
| Ausführung | Polar | |
| Bauform | Becher | |
| Durchmesser | 30 mm | |
| Kapazität | 10000 µF | |
| Länge | 30 mm | |
| max. Temperatur | 185 °C | |
| min. Temperatur | -40 °C | |
| Nennspannung (DC) | 25 V | |
| Toleranz | -10/+30 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85322200 |
| Originalverpackung | Karton mit 500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
