GS22306340068 | FTcap

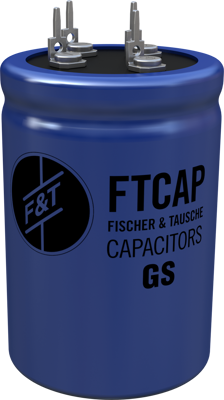

Electrolytic capacitor, 22000 µF, 63 V (DC), ±20 %, can, Ø 40 mm, GS22306340068
Unit Price (€ / pc.)
15.1368 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
15.14 € *
Price list
Quantity
Price per unit*
200 pcs.
15.1368 €
500 pcs.
14.6846 €
1000 pcs.
13.9230 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, 1024122, FTcap
The 1024122 electrolytic capacitor features a high reliability and long useful life, with all internal contacts securely welded.
Features
- High CV product
- RoHS compliant
- REACH compliant
Applications
- HiFi
- Consumer
- Industrial
- Inverter/drives
Technical specifications
| Anschluss | Leiterplatten-/Lötanschluss | |
| Ausführung | Polar | |
| Bauform | Becher | |
| Durchmesser | 40 mm | |
| Kapazität | 22000 µF | |
| Länge | 68 mm | |
| max. Temperatur | 185 °C | |
| min. Temperatur | -40 °C | |
| Nennspannung (DC) | 63 V | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85322200 |
| Originalverpackung | Karton mit 200 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
