MDK22132051,8118 | FTcap
Electrolytic capacitor, 220 µF, 320 V (DC), ±10 %, can, Ø 51.8 mm, MDK22132051,8118
Unit Price (€ / pc.)
33.3200 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
33.32 € *
Price list
Quantity
Price per unit*
100 pcs.
33.3200 €
300 pcs.
32.3204 €
500 pcs.
30.6544 €
*incl. VAT plus shipping costs
**Subject to prior sale

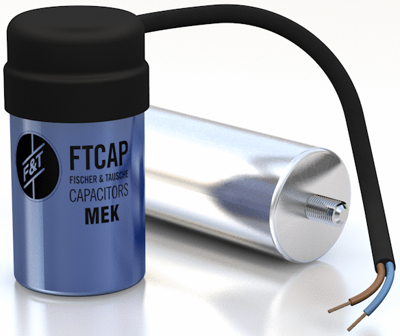

Electrolytic capacitor, 1016140, FTcap
The 1016140 electrolytic capacitor features a coonecting cable and double potted design. It is made of insulated aluminium can.
Features
- Protection according to IP 54
Applications
- Motorstart
- Whitegood motorcontrol
Technical specifications
| Anschluss | Kabelanschluss | |
| Ausführung | Polar | |
| Bauform | Becher | |
| Durchmesser | 51.8 mm | |
| Kapazität | 220 µF | |
| Länge | 118 mm | |
| max. Temperatur | 60 °C | |
| Nennspannung (DC) | 320 V | |
| Toleranz | ±10 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85322200 |
| Originalverpackung | Karton mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
