SIH27206330030 | FTcap

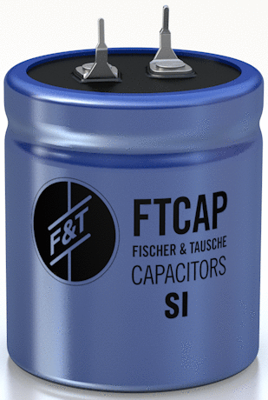

Electrolytic capacitor, 2700 µF, 63 V (DC), ±20 %, radial, pitch 10 mm, Ø 30 mm, SIH27206330030
Unit Price (€ / pc.)
7.8064 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
7.81 € *
Price list
Quantity
Price per unit*
500 pcs.
7.8064 €
1000 pcs.
7.5684 €
3000 pcs.
7.1876 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, 1022531, FTcap
The 1022531 electrolytic capacitor features a high reliability and high CV product. It is ultra compact with all internal contacts welded.
Applications
- HiFi
- Computer
- Industrial
- Tube amplifier
Technical specifications
| Connection | snap-in | |
| Version | polar | |
| Design | radial | |
| diameter | 30 mm | |
| ESR (Equivalent Series Resistance) | 106 mΩ | |
| Capacity | 2700 µF | |
| Length | 30 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 63 V | |
| Grid | 10 mm | |
| Ripple current | 1.8 A | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
