SIH33206325040 | FTcap

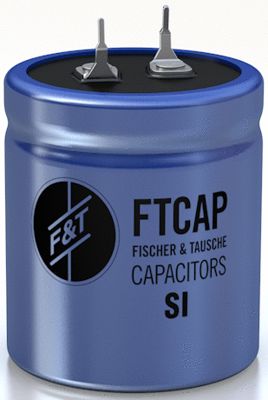

Electrolytic capacitor, 3300 µF, 63 V (DC), ±20 %, radial, pitch 10 mm, Ø 25 mm, SIH33206325040
Unit Price (€ / pc.)
5.6168 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
5.62 € *
Price list
Quantity
Price per unit*
500 pcs.
5.6168 €
1000 pcs.
5.4502 €
3000 pcs.
5.1646 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, 1015755, FTcap
The 1015755 electrolytic capacitor features a high reliability and high CV product. It is ultra compact with all internal contacts welded.
Applications
- HiFi
- Computer
- Industrial
- Tube amplifier
Technical specifications
| Connection | snap-in | |
| Version | polar | |
| Design | radial | |
| diameter | 25 mm | |
| Capacity | 3300 µF | |
| Length | 40 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 63 V | |
| Grid | 10 mm | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
