SZ10145035054 | FTcap
Electrolytic capacitor, 450 V (DC), -10/+30 %, can, Ø 35 mm, SZ10145035054
Unit Price (€ / pc.)
11.2336 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
11.23 € *
Price list
Quantity
Price per unit*
200 pcs.
11.2336 €
1000 pcs.
10.9004 €
3000 pcs.
10.3292 €
*incl. VAT plus shipping costs
**Subject to prior sale

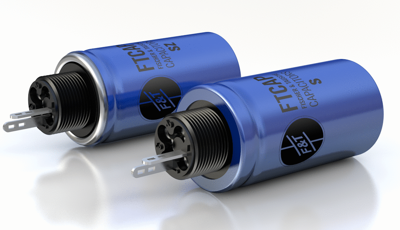

Electrolytic capacitor, 1015950, FTcap
The 1015950 electrolytic capacitor features high mechanical stability and central mounting, with all contacts welded.
Features
- Soldering lug terminals
- RoHS compliant
- REACH compliant
Applications
- Industrial
- Tube amplifier
- SMPS
Technical specifications
| Connection | soldering lug | |
| Version | polar | |
| Design | can | |
| diameter | 35 mm | |
| ESR (Equivalent Series Resistance) | 547 mΩ | |
| Length | 54 mm | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 450 V | |
| Ripple current | 0.5 A | |
| Tolerance | -10/+30 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 200 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
