JS-05-N-K | Fujitsu
Relay, 1 Form C (NO/NC), 5 V (DC), 112 Ω, 10 A, 300 V (DC), 400 V (AC), monostable, JS-05-N-K
Unit Price (€ / pc.)
1.7612 € *
Available: 6 pcs.
Leadtime: On Request **
Total Price:
1.76 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7612 €
25 pcs.
1.4994 €
100 pcs.
1.3923 €
250 pcs.
1.3209 €
*incl. VAT plus shipping costs
**Subject to prior sale

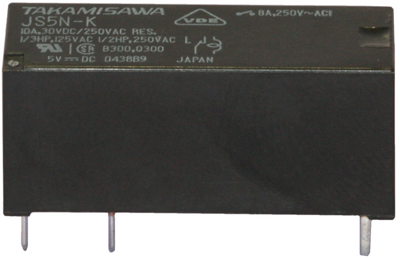

Miniature Power relay, type Fujitsu/Takamisawa JS.
Monostable, low design, sealed; Contacts: 1 x CO or 1 NO (depends on type). Contact material: AgSnO2/Au. Rated load: 8.0 A (24 VDC), 8.0 A (250 VAC). Switching voltage: max. 150 VDC / 400 VAC. Switching current: max. 10 A. Breaking capacity: max. 192 W / 2000 VA. Response/release time: 10/5.0 ms. Ambient temperatures: –40 to +85 °C. Certifications: UL, CSA, VDE, SEV, SEMKO, ÖVE, FIMKO, NEMKO, DEMKO, CQC, BSI.
1 x CO contact and 3.2 mm grid, type JS.
Technical attributes (type, rated voltage, response/release voltage, coil resistance, rated power): JS-05N-K, 5.0 VDC, 3.5/0.5 VDC, 112 ohm, 225 mW
Technical specifications
| Connection | PCB connection | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgSnO2 | |
| Switching Voltage (AC) | 400 V | |
| Switching Voltage (DC) | 300 V | |
| switching current | 10 A | |
| Coil voltage (DC) | 5 V | |
| Coil type | monostable | |
| Coil resistance | 112 Ω |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85364190 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
