CWR5 4R7 J | Futaba
Wirewound resistor, 4.7 Ω, 5 W, ±5 %, CWR5 4R7 J
Unit Price (€ / pc.)
5.2955 € *
Available: 183 pcs.
Leadtime: On Request **
Total Price:
5.30 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2955 €
10 pcs.
3.3082 €
50 pcs.
2.9036 €
250 pcs.
2.5109 €
1000 pcs.
2.2015 €
*incl. VAT plus shipping costs
**Subject to prior sale

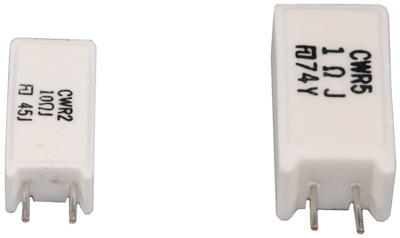

Wire-wound or metal oxide resistors, tolerance 5.0 %, type Futaba CWR/COR.
Compact design for PCB mounting and with high-temperature resistant quartz ceramic body
Wire-wound resistors, 5.0 W, type CWR-5.
Technical specifications
| ohmic resistance | 4.7 Ω | |
| Version | wirewound resistor | |
| Design | radial | |

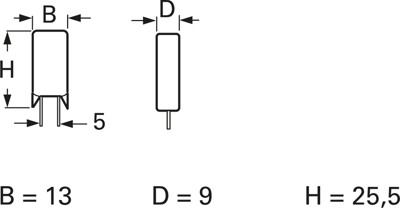

| Width | 9 mm | |
| Height | 25.5 mm | |
| Length | 13 mm | |
| Power | 5 W | |
| max. operating temperature | 200 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Tolerance | ±5 % | |
| Temperature coefficient | ±350 ppm/K |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85332100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
