CWR5 68R J | Futaba
Wirewound resistor, 68 Ω, 5 W, ±5 %, CWR5 68R J
Unit Price (€ / pc.)
1.7017 € *
Available: 146 pcs.
Leadtime: 27 Weeks **
Total Price:
1.70 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7017 €
25 pcs.
1.4994 €
100 pcs.
1.2971 €
500 pcs.
1.1305 €
1000 pcs.
1.0353 €
*incl. VAT plus shipping costs
**Subject to prior sale

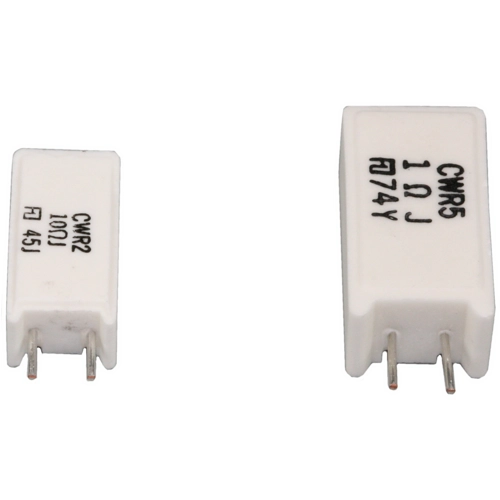

Wire-wound or metal oxide resistors, tolerance 5.0 %, type Futaba CWR/COR.
Compact design for PCB mounting and with high-temperature resistant quartz ceramic body
Wire-wound resistors, 5.0 W, type CWR-5.
Technical specifications
| ohmscher Widerstand | 68 Ω | |
| Ausführung | Drahtwiderstand | |
| Bauform | radial | |

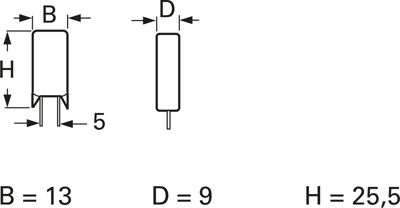

| Breite | 9 mm | |
| Höhe | 25.5 mm | |
| Länge | 13 mm | |
| Leistung | 5 W | |
| max. Temperatur | 200 °C | |
| min. Temperatur | -40 °C | |
| Montage | THT | |
| Toleranz | ±5 % | |
| Temperaturkoeffizient | ±350 ppm/K |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85332100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
