LC78 05-1.0 | GAPTEC
DC/DC converter, 6.5-42 VDC, 5 W, 1 output, 5 VDC, 93 % efficiency, LC78 05-1.0
Unit Price (€ / pc.)
20.1110 € *
Available: 9 pcs.
Leadtime: 4 Weeks **
Total Price:
20.11 € *
Price list
Quantity
Price per unit*
1 pcs.
20.1110 €
10 pcs.
17.6953 €
42 pcs.
16.6838 €
168 pcs.
15.7199 €
672 pcs.
14.7441 €
*incl. VAT plus shipping costs
**Subject to prior sale

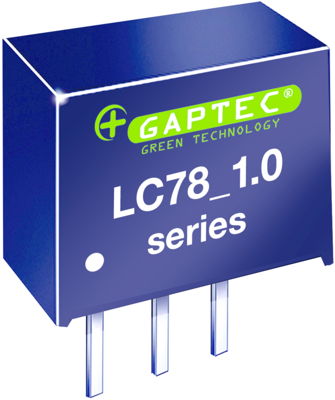

Switching mode regulators, type GAPTEC LC78../LC..78../LMP78.
Pin-compatible with voltage regulator LM78.; Operating temperatures: –40 to +85 °C.
Technical attributes (type, input voltage range, output voltage, output current): LC78 UC05-1.0, 6.5 to 42 VDC, 5.0 VDC, 1.0 A
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 5 VDC | |
| Ausgangsstrom | 1 A | |

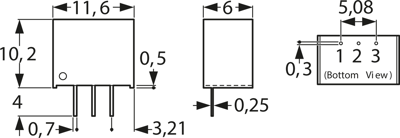

| Bauform | SIP3 | |
| Breite | 6 mm | |
| Eingangsspannungsbereich | 6,5-42 VDC | |
| Höhe | 10.2 mm | |
| Länge | 11.6 mm | |
| Leistung | 5 W | |
| Wirkungsgrad | 93 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
| Originalverpackung | Stange mit 42 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
