LC78 05-3.0 | GAPTEC

DC converter, 6.5-28 VDC, 15 W, 1 output, 5 VDC, 92 % efficiency, LC78 05-3.0

Order No.: 33C118
EAN: 4099891335021
MPN:
LC78 05-3.0
DC/DC CONVERTER LC78_05-3.0
Series: LC78

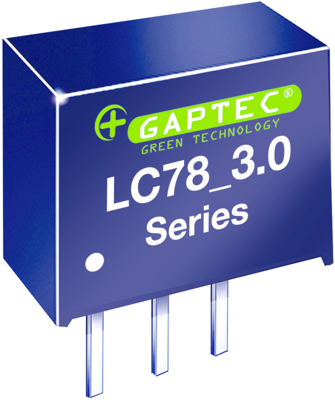

LC78 05-3.0 GAPTEC DC/DC Converters Image 1
LC78 05-3.0 GAPTEC DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
25.8825 € *
Available: 14 pcs.
Leadtime: 5 Weeks **
Total Price:
25.88 € *
Price list
Quantity
Price per unit*
1 pcs.
25.8825 €
10 pcs.
22.7766 €
42 pcs.
21.4676 €
168 pcs.
20.2300 €
*incl. VAT plus shipping costs
**Subject to prior sale

Switching mode regulators, type GAPTEC LC78../LC..78../LMP78.

Pin-compatible with voltage regulator LM78.; Operating temperatures: –40 to +85 °C.

Switching mode regulator LC78..3.0.

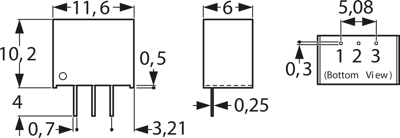

Housing width: 7.5 mm.

Technical attributes (type, input voltage range, output voltage, output current): LC78 UC05-3.0, 6.5 to 28 VDC, 5.0 VDC, 3.0 A

Technical specifications
Anzahl der Ausgänge 1
Ausgangsspannungsbereich 5 VDC
Ausgangsstrom 3 A
Bauform SIP3
Breite 6 mm
Eingangsspannungsbereich 6,5-28 VDC
Höhe 10.2 mm
Länge 11.6 mm
Leistung 15 W
Wirkungsgrad 92 %
Logistics
Ursprungsland TW
Zolltarifnummer 85044095
Originalverpackung Stange mit 42 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
