4815300000B | GMW

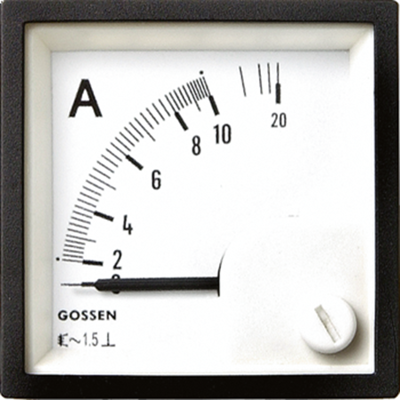

Panel-mount instrument, Front panel, Moving-iron mechanism, AC/DC, 4815300000B
Order No.: 15K206
EAN: 4099891453152
MPN:
4815300000B
EQB48 15/30A
Unit Price (€ / pc.)
26.2514 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
26.25 € *
Price list
Quantity
Price per unit*
1 pcs.
26.2514 €
5 pcs.
24.9424 €
10 pcs.
23.6929 €
*incl. VAT plus shipping costs
**Subject to prior sale
Display instruments, type GMW EQB.
Moving iron instrument to safety standard EN 61010, for DC and AC current and voltage, with black slim-line bezel to DIN 43718; Case material: polycarbonate, self-extinguishing and non-dripping to UL 94 V-0. Glass: glare resistant. Tolerance class: 1.5. Scaling: rough-fine. Inherent power consumption: at current/voltage 0.6 to 0.8 VA/2.5 VA. Degree of protection: IP 52. Operating position: vertical. Mounting depth: without/with covers 53/66 mm.
With bezel dimensions of 48 x 48 mm, type EQB 48.
Mounting cutout: 45 x 45 mm. Scale length: 42 mm. Operating voltage: max. 300 V. Test voltage: 3.5 kV. Weight: 100 g.
Type: 48153 00000 B, 15/30 A
Technical specifications
| AC bzw. DC-Messung möglich | AC und DC | |
| Anschluss | Schraubanschluss | |
| Breite | 48 mm | |
| Breite des Ausschnitts | 45 mm | |
| Einbautiefe | 66 mm | |
| Höhe | 48 mm | |
| Höhe des Ausschnitts | 45 mm | |
| max. Strom | 30 A | |
| Min. Strom | 15 A | |
| Montage | Frontplattenmontage |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 90303370 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
