N 51378 | GMW

Display instrument, 0.15 A, Front-panel mounting, Moving-iron mechanism

Order No.: 19K160
EAN: 4099891453596
MPN:
N 51378
RKN57 150MA
GMW

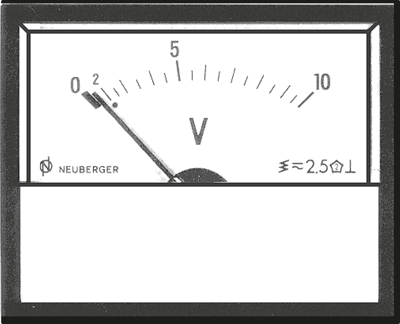

N 51378 GMW Current Meter Image 1
N 51378 GMW Current Meter Image 2
Image may differ
Print
Key Specification:
Max. current 150 mA
AC or DC measurement possible AC and DC

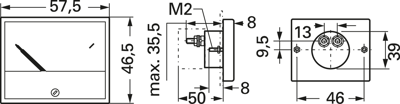

Width 57 mm
Height 46 mm
Show 9 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
79.611 € *
Available: 2 pcs.
Leadtime: 10 Weeks **
Total Price:
79.61 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
79.611 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Display instruments, type GMW RKN 57.

Class 2.5 moving iron instrument. For DC and AC current/voltage; Mounting position: 90° vertical. Pointer travel: 90°. Scale length: 30 mm. Bezel: gray.

Type: 150 mA
Technical specifications
AC or DC measurement possible AC and DC
Connection screw connection
Width 57 mm
Height 46 mm
Max. current 150 mA
Assembly front panel mounting
Show similar products 0
Logistics
Country of origin CZ
Customs tariff number 90303100
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
