N 51384 | GMW

Display instrument, 1.5 A, Front-panel mounting, Moving-iron mechanism

Order No.: 19K210
EAN: 4099891453619
MPN:
N 51384
RKN57 1,5A
GMW
N 51384 GMW Current Meter Image 1
N 51384 GMW Current Meter Image 2
Image may differ
Print
Key Specification:
Max. current 1.5 A
AC or DC measurement possible AC and DC
Width 57 mm
Height 46 mm
Show 9 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
165.41 € *
Available: 8 pcs.
Leadtime: 10 Weeks **
Total Price:
165.41 € *
Price list
Quantity
Price per unit*
1 pcs.
165.41 €
5 pcs.
157.08 €
10 pcs.
148.75 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Display instruments, type GMW RKN 57.

Class 2.5 moving iron instrument. For DC and AC current/voltage; Mounting position: 90° vertical. Pointer travel: 90°. Scale length: 30 mm. Bezel: gray.

Type: 1.5 A
Technical specifications
AC or DC measurement possible AC and DC
Connection screw connection

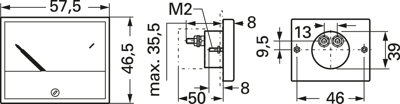

Width 57 mm
Installation depth 44 mm
Height 46 mm
Max. current 1.5 A
Assembly front panel mounting
Show similar products 0
Logistics
Country of origin CZ
Customs tariff number 90303370
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
