N 51385 | GMW

Display instrument, 2.5 A, Front-panel mounting, Moving-iron mechanism, N 51385

Order No.: 19K220
EAN: 4099891453626
MPN:
N 51385
RKN57 2,5A
GMW

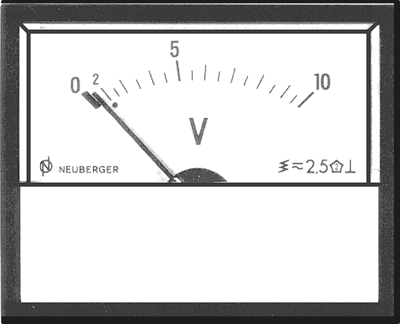

N 51385 GMW Current Meter Image 1
N 51385 GMW Current Meter Image 2
Image may differ
Print
Key Specification:
Max. current 2.5 A
AC or DC measurement possible AC and DC
Width 57 mm
Height 46 mm
Show 9 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
117.81 € *
Available: 1 pcs.
Leadtime: 1 Week **
Total Price:
117.81 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
117.81 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Display instruments, type GMW RKN 57.

Class 2.5 moving iron instrument. For DC and AC current/voltage; Mounting position: 90° vertical. Pointer travel: 90°. Scale length: 30 mm. Bezel: gray.

Type: 2.5 A

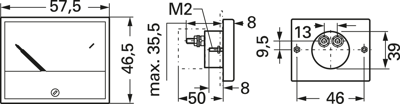

Technical specifications
AC or DC measurement possible AC and DC
Connection screw connection
Width 57 mm
Installation depth 44 mm
Height 46 mm
Max. current 2.5 A
Assembly front panel mounting
Show similar products 0
Logistics
Country of origin CZ
Customs tariff number 90303370
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
