Display instrument, 10 A, Front-panel mounting, Moving-iron mechanism, N 51390

Order No.: 19K250
EAN: 4099891453657
MPN:
N 51390
RKN57 10A
GMW

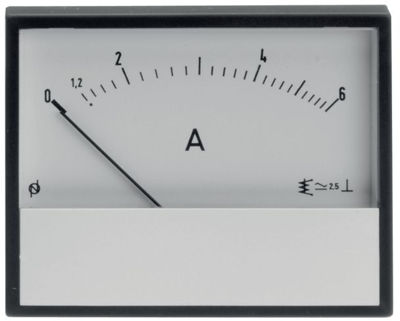

N 51390 GMW Current Meter
Image may differ
Print
Key Specification:
Max. current 10 A
AC or DC measurement possible AC and DC
Width 57 mm
Height 46 mm
Show 9 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
117.81 € *
Available: 11 pcs.
Leadtime: 1 Week **
Total Price:
117.81 € *
Price list
Quantity
Price per unit*
1 pcs.
117.81 €
5 pcs.
111.86 €
10 pcs.
105.91 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Display instruments, type GMW RKN 57.

Class 2.5 moving iron instrument. For DC and AC current/voltage; Mounting position: 90° vertical. Pointer travel: 90°. Scale length: 30 mm. Bezel: gray.

Type: 10 A
Technical specifications
AC or DC measurement possible AC and DC
Connection screw connection
Width 57 mm
Installation depth 44 mm
Height 46 mm
Max. current 10 A
Assembly front panel mounting
Show similar products 0
Logistics
Country of origin CZ
Customs tariff number 90303370
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
