7250067250B | GMW

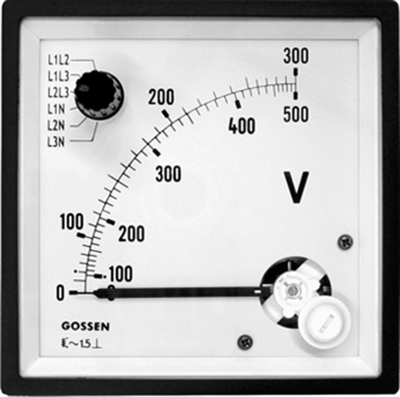

Panel-mount instrument with changeover switch, Front panel, Moving-iron mechanism, AC, 7250067250B
Display instruments with toggle switch, type GMW EQB.. U6.
Moving iron instrument to safety standard EN 61010, black slim-line bezel to DIN 43718; toggle switch (no zero position): L1-L3, L2-L3, L1-L2, L1-N, L2-N, L3-N. Case material: polycarbonate, self-extinguishing and non-dripping to UL 94 V-0. Glass: glare resistant. Tolerance class: 1.5. Scaling: rough-fine. Inherent power consumption: on voltage (phase-phase) approx. 2.5 VA. Degree of protection: IP 52. Operating position: vertical. Mounting depth: without/with covers 53/66 mm. Toggle switch: 20 mm.
With bezel dimensions of 72 x 72 mm, type EQB 72/U6.
Mounting cutout: 68 x 68 mm. Scale length: 63 mm. Operating voltage: max. 300 V. Test voltage: 3.5 kV. Weight: 220 g.
Type: 72500 67250, 500 V
| Breite | 72 mm | |
| Breite des Ausschnitts | 68 mm | |
| Einbautiefe | 66 mm | |
| Höhe | 72 mm | |
| Höhe des Ausschnitts | 68 mm | |
| max. Spannung | 500 V | |
| Montage | Einbaumontage |
| Ursprungsland | CN |
| Zolltarifnummer | 90303370 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
