DIG62X38 A1155 A0 D011 | GMW
Digital display instrument, DIG62X38 A1155 A0 D011
Order No.: 19K7502
EAN: 4099891454258
MPN:
DIG62X38 A1155 A0 D011
Unit Price (€ / pc.)
96.6042 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
96.60 € *
Price list
Quantity
Price per unit*
1 pcs.
96.6042 €
5 pcs.
86.9414 €
10 pcs.
77.2667 €
*incl. VAT plus shipping costs
**Subject to prior sale

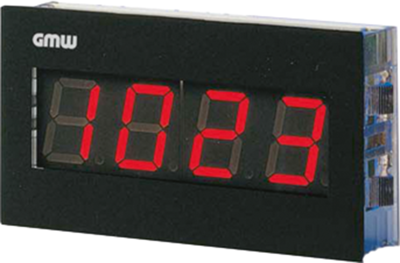

Digital display instruments, type GMW Digem 62 x 38 A5.
Automatic polarity display, externally selectable decimal point; Display range: ±1999. Installation by means of snap-on mounting, connection via 14-pole pin header. Operating voltage: 5.0 VDC ±5.0 %. Dimensions: front frame 62 x 38 mm (1.0 mm height). Mounting depth: 26.5 mm.
With red LED display, 14.0 mm height.
Type: ±2.0 VDC
Technical specifications
| AC bzw. DC-Messung möglich | DC | |
| Breite | 62 mm | |
| Einbautiefe | 26.5 mm | |
| Höhe | 38 mm | |
| max. Spannung | 200 V | |
| min. Spannung | 2 V | |
| Montage | Snap-in |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 90303370 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
