DIGEM LED A1175 A0 D010 | GMW

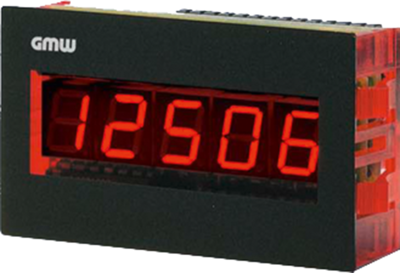

Digital display instrument, DIGEM LED A1175 A0 D010
Digital display instruments, type GMW Digem 62 x 38 B5.
4.5-digit display, high resolution through numerical range of ±19999. Low profile of max. 33 mm; Front dimensions: 62 x 38 mm. Snap-in fastener. Measuring ranges: ±2.0 to 200 VDC, ±200 µA to 200 mA DC. Operating voltage: 5.0 VDC ± 5.0 %. Operating temperatures: 0 to +50 °C. Display: 7-segment (red LED, reflective LCD). Digit height: 10 mm. Polarity: automatic Plus and Minus indication. Decimal point: can be set externally. Control panel cutout: W 60 x H 36 mm. Degree of protection housing front/rear: IP 50/IP 00. For panel mounting. Connection via 14-pole pin header (14-pole male connector is included).
Technical attributes (type, default measurement range, display type): A1175, ±2.0 VDC, LED
| AC or DC measurement possible | DC | |
| Width | 60 mm | |
| Width of cut-out | 38 mm | |
| Installation depth | 33 mm | |
| Height | 36 mm | |
| Height of cut-out | 62 mm | |
| max. Voltage | 200 V | |
| min. Voltage | 2 V | |
| Assembly | snap-in |
| Country of origin | DE |
| Customs tariff number | 90303370 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
