27528 | Goobay

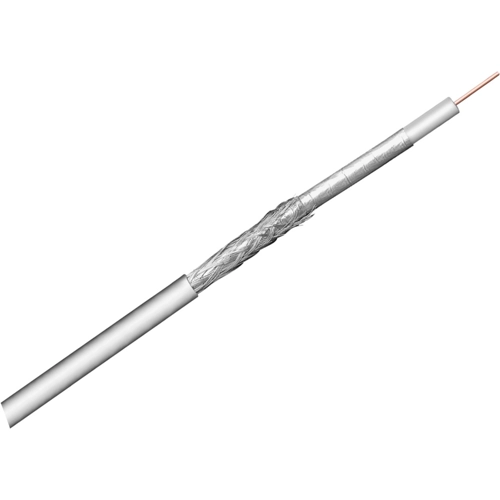

Coaxial cable 75 Ohm, 100 dB, 2-fold shielded, white, 27528
Order No.: 69N305
EAN: 4040849275289
MPN:
27528
Unit Price (€ / mtr.)
0.357 € *
Available: 0 mtr.
Leadtime: 1 Week **
Coaxial cable, 27528, Goobay
Features
- Digitally compatible with HDTV installed via DVB-S/S2, DVB-T/T2, DVB-C/C2
- Double-shielded TV cable for interference-free transmission
- Metre scaling is indicated on the antenna cable
- TV aerial cable meets the CPR (Construction Products Regulation), therefore corresponding to the Eca fire protection class
- For connecting or extending e. g. cable TV or radio systems
Technical specifications
| Outer diameter | 6.9 mm | |
| Dielectric diameter | 4.6 mm | |
| Colour | white | |
| Impedance | 75 Ω | |
| Cable material | CCS | |
| Material | PVC | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Shielding | shielded |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85442000 |

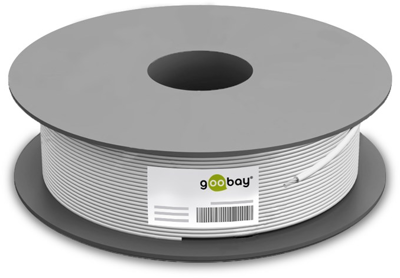

| Original Packaging | Reel with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
