61128 | Goobay

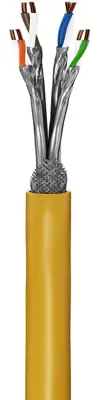

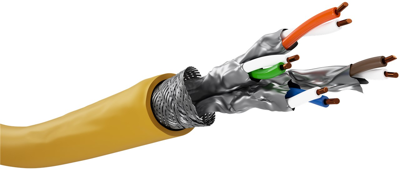

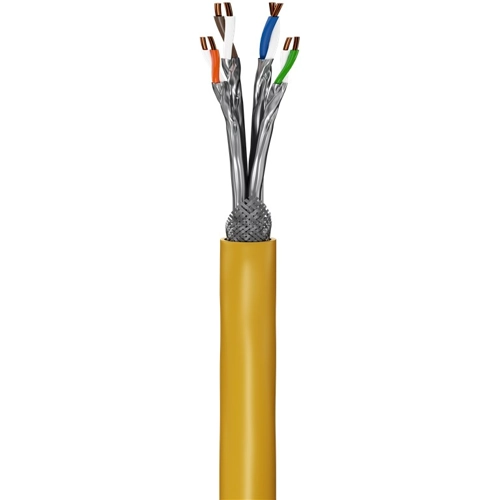

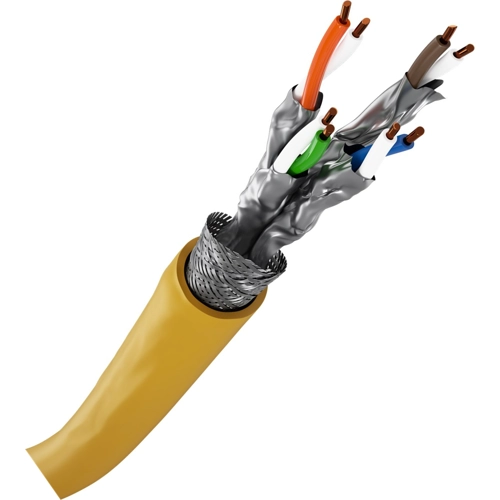

LSZH data cable, Cat 8.1, 8-wire, AWG 22-1, yellow, 61128
Order No.: 96F8360
EAN: 4040849611285
MPN:
61128
Unit Price (€ / mtr.)
1.7017 € *
Available: 0 mtr.
Leadtime: 1 Week **
Network cable, 61128, Goobay
Features
- LAN cable for setting up a CAT 8.1 channel
- Suitable for 25GBase-T and 40GBase-T Ethernet networks (40-gigabit capable) and backward compatible with 10BASE-T, 100BASE-TX, 1000BASE-T
- With a transmission bandwidth of up to 2,000 MHz, the Ethernet cable has 4 times the bandwidth of CAT 6A cables
- Equipped with wire pairs with an aluminium foil screen (PiMF) and an S/FTP overall screen made of aluminium braid for a loss-free signal transmission
- Low-smoke and halogen-free network cable for structured indoor installation
Technical specifications
| Anzahl der Adern | 8 | |
| Ausführung | Netzwerkkabel | |
| AWG-Leiterquerschnitt | AWG 22-1 | |
| Farbe | gelb | |
| Halogenfrei | Yes | |
| Kategorie | Cat 8.1 | |
| Leitermaterial | Kupfer | |
| Material | LSZH | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | No | |
| Temperaturbereich (bewegt) | -20 °C bis 60 °C | |
| Temperaturbereich (unbewegt) | 0 °C bis 50 °C |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85444920 |
| Originalverpackung | Trommel mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
