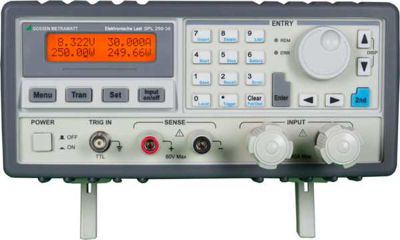

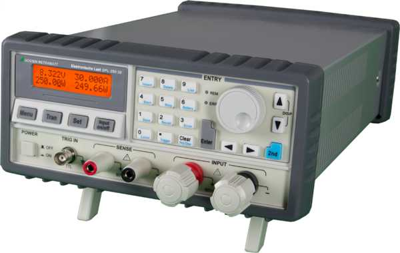

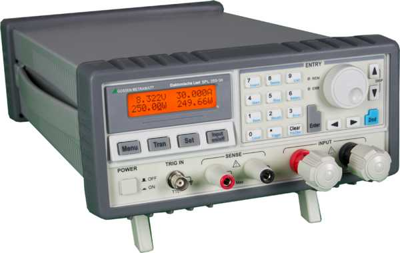

SPL 200-20 | Gossen Metrawatt
Electronic load, 0 to 20 A, 200 W, 115-230 VAC, SPL 200-20
Unit Price (€ / pc.)
2,677.50 € *
Available: 0 pcs.
Available in 7 Days: 6 pcs.
Leadtime: 4 Weeks **
Electronic load, K854A, Gossen Metrawatt
The SPL Series Electronic Loads are highly accurate DC current sinks for use in research, development, production, service and education.
Features
- 4 operating modes: constant current, constant voltage, constant load, constant power
- High-speed sequence and transient measurement, short-circuit resistance, battery discharge and other auxiliary functions
- Programmable current rise and fall time, steep edges
- Multiple groups of parameters (device settings) and sequences (load profile) can be stored and recalled.
Technical specifications
| Width | 226 mm | |
| Input voltage AC | 115-230 VAC | |
| Height | 110 mm | |
| Power | 200 W | |
| Depth | 414 mm | |
| Load DC voltage | 0 to 200 V | |
| Load direct current | 0 to 20 A | |
| Load resistance | 0.066 to 6660 Ω | |
| Range of Output Currence | 0 to 20 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85437090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
