METRACLIP 410 | Gossen Metrawatt

TRMS AC/DC current clamp METRACLIP 410, 400 A (DC), 400 A (AC), 300 V (DC), 300 V (AC), opening 25 mm, CAT III 300 V

Order No.: 21K5338
EAN: 4012932122022
MPN:
METRACLIP 410
M320B
Series: METRACLIP
Gossen Metrawatt

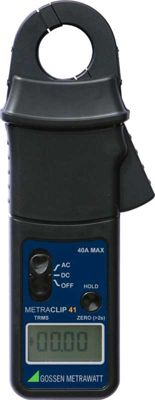

METRACLIP 410 Gossen Metrawatt Clamp Meters
Image may differ
Unit Price (€ / pc.)
499.80 € *
Available: 0 pcs.
Available in 7 Days: 16 pcs.
Leadtime: 4 Weeks **
Total Price:
499.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
499.80 €

AC-DC Current Clamp, M320B, Gossen Metrawatt

AC/DC - Zangenstrommessgerät bis 400 A

The METRACLIP 410 clamp current meter is used for precise, non-contact measurement of AC and DC currents and complex current forms.

Ideal for electricians, as AC and DC can be measured - and currents up to 300 A, according to the requirements of "workshop equipment

  • Real effective value display
  • 1 mA / 10 mA Resolution
  • Automatic measuring range selection
  • Automatic zero adjustment
  • Automatic switch off
  • Hold measured values
  • Gripper opening 25 mm
  • METRACLIP 41: Precise current measurement from 5 mA to 40 A
  • METRACLIP 410: Precise current measurement from 100 mA to 400 A

1 AC / DC clamp ammeter

1 9 V alkaline battery

1 Instruction manual

Technical specifications
Version AC/DC current clamp
TRMS possible Yes
max. measured value (frequency) 400 Hz
max. measured current value (AC) 400 A
max. measured current value (DC) 400 A
min. Measured value (frequency) 15 Hz
max. voltage measuring range (AC) 300 V
max. voltage measuring range (DC) 300 V
Surge voltage category CAT III 300 V
Pliers opening 25 mm
Logistics
Country of origin GB
Customs tariff number 90303370
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
