METRACLIP 87 | Gossen Metrawatt

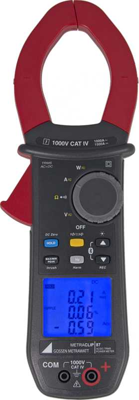

TRMS clamp multimeter METRACLIP 87, 1500 A (DC), 1500 A (AC), 1000 V (DC), 1000 V (AC), opening 48 mm, CAT IV 1000 V
Unit Price (€ / pc.)
1,201.90 € *
Available: 0 pcs.
Available in 7 Days: 7 pcs.
Leadtime: 4 Weeks **
Multi-measuring plier, M312L, Gossen Metrawatt
Multi-measuring clamp for current, voltage, power, harmonics and frequency, 1000 V CAT IV
The METRAclip 87 multimeter clamp is suitable for measurements of medium power in the low-voltage range and thus offers optimum safety for every type of installation and under all measuring conditions. In addition to applications such as maintenance, troubleshooting or servicing, the clamp is also used for measurements in railroad traffic and low-voltage distribution networks.
Technical specifications
| TRMS possible | Yes | |
| max. measured value (frequency) | 1999 kHz | |
| max. measured current value (AC) | 1500 A | |
| max. measured current value (DC) | 1500 A | |
| max. resistance range | 99.99 kΩ | |
| min. Measured value (frequency) | 5 Hz | |
| Product type | Zangenmultimeter | |
| max. voltage measuring range (AC) | 1000 V | |
| max. voltage measuring range (DC) | 1000 V | |
| Surge voltage category | CAT IV 1000 V | |
| Pliers opening | 48 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90303100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
