Z3512A | Gossen Metrawatt

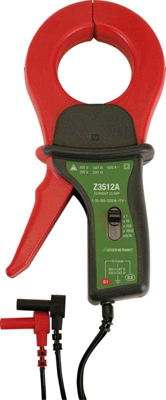

Current clamp Z3512A, 1000 A (DC), 1000 A (AC), opening 52 mm, CAT III 600 V, CAT IV 300 V
Order No.: 21K5533
EAN: 4012932116281
MPN:
Z3512A
Z225A
Unit Price (€ / pc.)
907.97 € *
Available: 0 pcs.
Available in 7 Days: 14 pcs.
Leadtime: 4 Weeks **
Clamp current sensor, Z225A, Gossen Metrawatt
Clamp current sensor 1/10/100/1000 A AC, switchable
The clamp-on current sensor Z3512A is suitable for connection to digital multimeters with an input resistance of 5 -10 MW at V~. Due to its high measuring sensitivity, currents in ground loops can be detected and measured, as well as leakage or fault currents in the grounding of single-phase or three-phase networks. By switching to higher current ranges, however, it can also be used as a current sensor for heavy current applications with a very high transmission accuracy.
Features
- Alternating currents from few mA up to 1000A
- Fault current measurements on three-wire cables
- High current measurements on conductors and rails with high accuracy
Technical specifications
| Version | current clamp | |
| max. measured value (frequency) | 3 kHz | |
| max. measured current value (AC) | 1000 A | |
| max. measured current value (DC) | 1000 A | |
| max. resistance range | 40 MΩ | |
| min. Measured value (frequency) | 48 Hz | |
| Surge voltage category | CAT III 600 V, CAT IV 300 V | |
| Pliers opening | 52 mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 90303370 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
