METRAHIT 27EX | Gossen Metrawatt
Milliohmmeter for EX
Order No.: 21K5298
EAN: 4012932118834
MPN:
METRAHIT 27EX
M227F
Unit Price (€ / pc.)
5,343.10 € *
Available: 0 pcs.
Available in 7 Days: 2 pcs.
Leadtime: 4 Weeks **

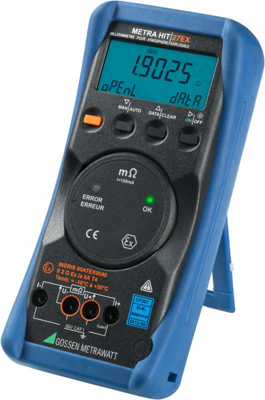

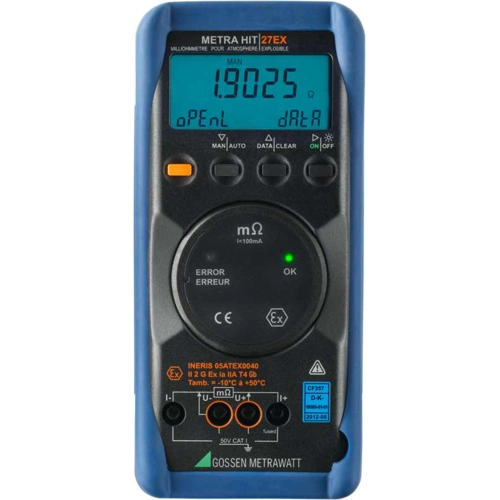

Milliohmmeter, M227F, Gossen Metrawatt
Milliohmmeter for use in hazardous areas
Compact milliohmmeter for measurement of low ohmic transitions in hazardous areas e.g. contacts inside the aircraft tank (bonding test) as well as for general low ohmic measurements inside or outside the hazardous area e.g. on the aircraft skin (lightning protection, "leakage test" (Wick test))
Features
- Measuring ranges: 30 mΩ, 300 mΩ, 3 Ω, 30 Ω
- Resolution: 10 µΩ
- Measurement method: Kelvin connection (four-wire measurement)
- DATA hold memory: 1200 measured values
Technical specifications
| Version | resistance tester | |
| Resistance Range | 30 mΩ to 30 Ω |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90303900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
