METRAHIT 27M | Gossen Metrawatt
TRMS digital multimeter METRAHIT 27M, 600 VDC, 600 VAC, CAT II 600 V
As an alternative, we recommend the following item:

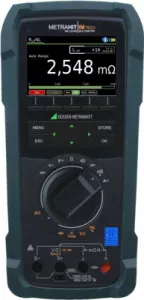

Multi- and Milliohmmeter with Datalogger, METRAHIT IM TECH BT
Order No.: 21K5300
Manufacturer: Gossen Metrawatt
per pc. 2,595.39 € *
*incl. VAT plus shipping costs
All-in-one device, M227A, Gossen Metrawatt

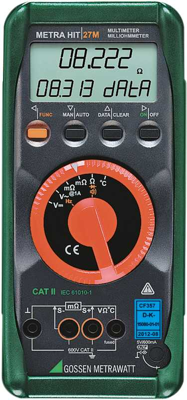

The METRAHit 27M is a compact milliohmmeter, multimeter and thermometer.
It is ideally suited both for on-site service and for many tasks in the laboratory.
Features
- Milliohmmeter: 3.000 mΩ... 300.00 mΩ with 1A measuring current and 30.00 mΩ... 30.00 Ω with 200 mA measuring current.

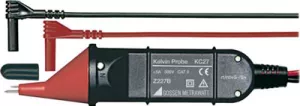

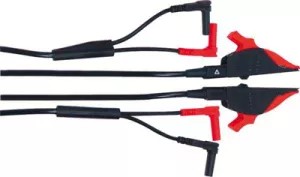

- Kelvin connection (four-wire measurement)
- Resistance measurement 300 Ω... 30 MΩ
- Voltage measurement 3... 600 VDC and 3... 600 VAC with ±30,000 digits
Technical specifications
| Ausführung | Digital-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| max. Widerstandsmessbereich | 30 MΩ | |
| Spannungsmessbereich (AC) | 600 V | |
| Spannungsmessbereich (DC) | 600 V | |
| Überspannungskategorie | CAT II 600 V |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 90303200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
